USART/UART Serial Port LCD Module
7 Inch Industrial UCOS Intelligent Display Terminal Support RS232 RS485 Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product Specifications | ||
| Hardware Performance | Model | AMT070W124-L800X480R-X1 |
| Operating System | UCOS | |
| Display Screen | 7TFT LCD | |
| Resolution (Px) | 800X480 | |
| Colour | 65536 | |
| Brightness | 250 cd/m2 | |
| Badly-Lit | LED (support backlight adjustment) | |
| LED Life | 20,000 hours | |
| Touch Screen | 4-wire industrial resistance touch screen (surface hardness 4H) | |
| Central Processing Unit | 600MHz ARM9 Built-in 8MB DDR2Internal storage | |
| Memory | 16Mbyte SPI NOR Flash | |
| RTC | Optional | |
| Buzzer | Supported | |
| Power Failure Data Preservation | Supported, 3S automatic saving | |
| USB Port | Not have | |
| Program Download Method | SD card | |
| Communication Port | 1 serial port, RS232 or RS485 optional | |
| Electrical Specifications | Rated Power | The biggest3.5W |
| Rated Voltage | DC9-30V | |
| Power Protection | Equipped with +/-250V lightning surge protection ability | |
| Allow Power Loss | <5ms | |
| CE&ROHS | Complies with EN61000-6-2:2005, EN61000-6-4:2007 standard; lightning surge +/-250V, group pulse +/-2KV; electrostatic contact discharge +/-4KV; electrostatic air discharge +/-8KV. | |
| Environmental Specifications | Working Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Ambient Humidity | 10~90% RH (no condensation) | |
| Shock Resistance | 10-25Hz (X, Y, Z direction, 2g/30 minutes) | |
| Cooling Method | Natural air cooling | |
| Other Parameters | Protection Level | The front panel is compliant with IP65 (with flat enclosure installation), and the rear shell of the fuselage complies with IP20. |
| Net Weight Of The Whole Machine | 30g | |
| Corresponding Software | Upper position:HMIStudio | |

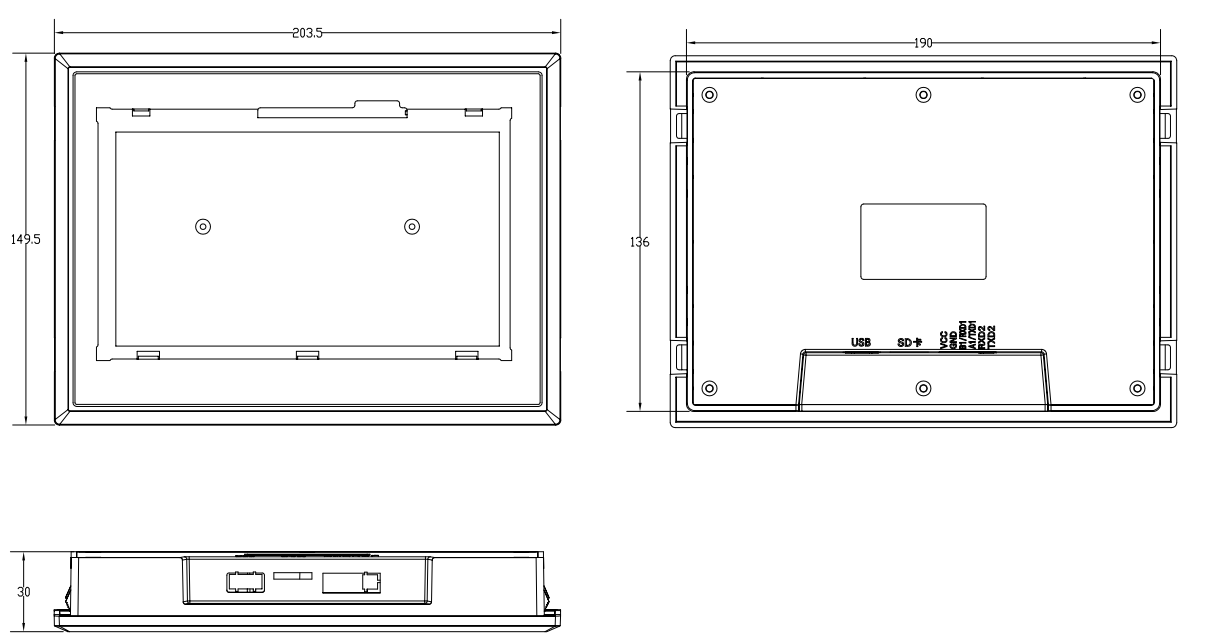

Mechanical Drawings

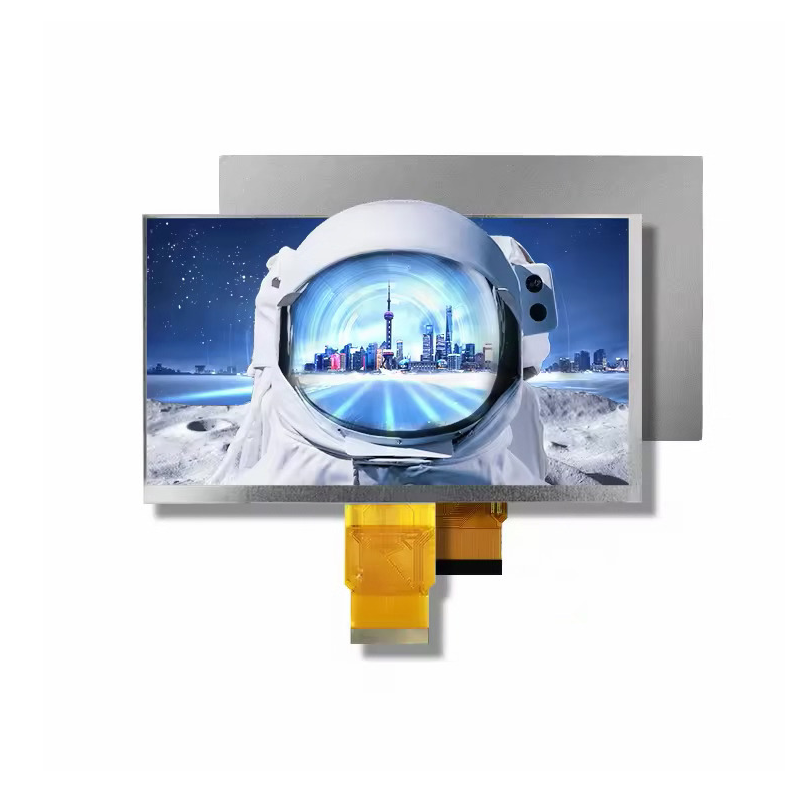

Product Details
Our Advantages
Size Customization: Available in a range of dimensions spanning from 2.4 inches to 10.1 inches, providing versatility to meet specific requirements.
Resolution Customization: Configurable with various screen resolutions such as 320 pixels by 240 pixels, 480 pixels by 320 pixels, 800 pixels by 480 pixels, and others, tailored to a wide array of display needs.
Flash Memory Customization: Adjustable options for flash storage include capacities of 8 megabytes, 16 megabytes, 64 megabytes, and 128 megabytes, offering ample space for data storage.
Communication Interface Flexibility: Supports diverse communication interfaces like TTL, RS485, and RS232, ensuring seamless connectivity solutions.
Customizable Control System: Software and primary controller can be customized to meet exacting application specifications.
Touch Panel Versatility: Compatible with both customized resistive and capacitive touch panel configurations, providing flexibility in user interaction methods.
Auxiliary Function Customization: Allows for adjustment of power supply voltage, configurations of external interfaces, capabilities of sensors, functionality of buzzers, mechanisms for power outage protection, real-time clock (RTC), and more, enhancing adaptability across various applications.
Key Considerations for Choosing the Best LCD Module
Size Specification: Tailored to fit both the overall dimensions and the active display area based on specific design and application requirements.
Interface Options: Offered in various forms such as TTL, RS485, and RS232, selected according to device resources and system specifications.
Temperature Management: Incorporates mechanisms to ensure prolonged operational lifespan and consistent performance under varying temperature conditions.
Humidity Adaptability: Maintains product integrity to match the humidity levels prevalent in the operating environment.
Shock Absorption: Engineered to withstand rigorous vibrations and shaking typical in demanding operational environments.
